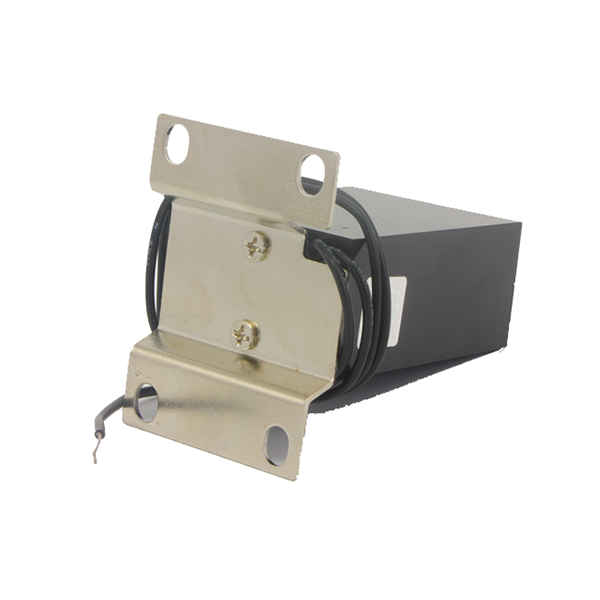

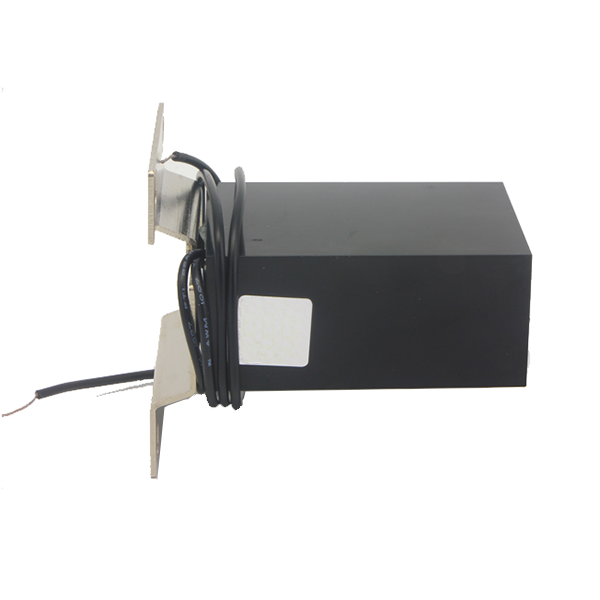

CSKE-7R electromagnetic counter
Working principle and purpose
The CSKE-7R seven-digit electromagnetic counter is used to record the accumulation of electrical pulse signals.
It can be combined with secondary instrument to form a digital display instrument, which is widely used in petroleum and chemical industry, various electrical pulse counts for textiles, machinery, mining, national defense, agriculture, food, printing, etc.
After the electric signal is input to the counter, a suction force is generated in the electromagnet, which causes the armature to drive the escapement, which drives the number to rotate in a decimal system.
The main technical parameters:
Counting range: 0-9999999
Counting speed: 10 times/sec
Working voltage: DC24V, DC12V, AC110V, AC220V
Zero return method: No
Power DC: 3.5W, AC: 3W
Lead length can be according to customer requirements
Use environment temperature: -20 degrees to 50 degrees
Relative temperature: ≤85%
