Working principle and use:
The LFC-6 six-digit electromagnetic counter produced by our company is used to record the accumulation of electrical pulse signals. It can be combined with a secondary instrument to form a digital display instrument, which is widely used in various electrical pulse counting in various industries such as petroleum, chemical, textile, machinery, mining, national defense, agriculture, food, printing and so on. After the electric signal is input to the counter, a suction force is generated in the electromagnet, which makes the armature drive the escapement, and drives the digital wheel to rotate for decimal counting.
Technical parameter:
|
Counting range |
0-999999 |
|
Voltage type |
DC24V, AC220V |
|
Voltage fluctuation range |
±10% |
|
Counting speed |
DC20 times/sec, AC10 times/sec |
|
Indication error |
<1X0.00001 |
|
Ambient temperature |
-20℃-50℃ Relative temperature: ≤85% |
|
power |
DC1.5W, AC2.5VA |
|
Return to zero |
Press to return to zero (with lock) |
|

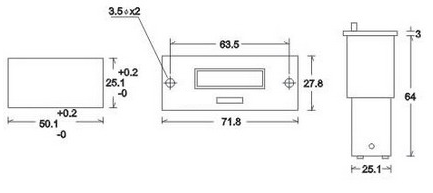

Installation method |
Panel type |

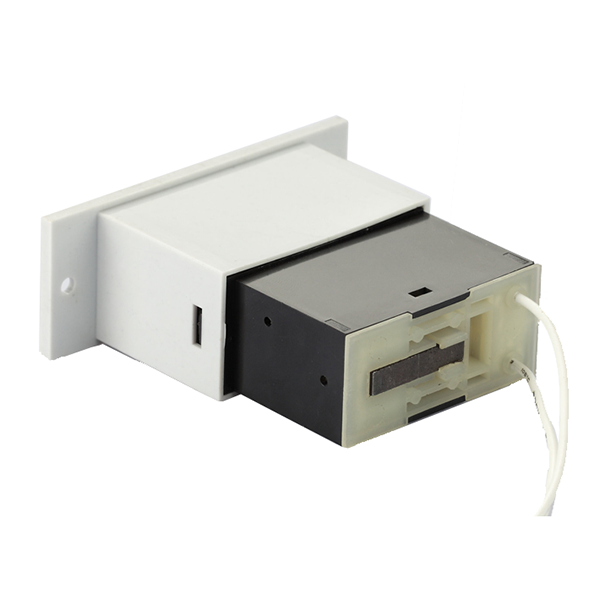

LFC-6
