JDM11-6H 5-pin electronic counter is widely used in production counting, flow counting, automatic packaging machinery, speed, length, stamping times and other occasions that need to be counted. It can also be used as a secondary instrument to form a display instrument.
Technical parameter:
|
Count digits |
Six |
|
Counting range |
0-99999,0-999999 |
|
Rated working voltage |
DC 12V, 24V, AC24V, 48V, 110V, 220V |
|
Counting speed |
10 (times/sec) and 1000 (times/sec) |
|
Operating voltage range |
85%-110% |
|
Power |
≤2W |
|
After power failure |
The current data is kept for 10 years |
|
Counting input method |
Professional with NPN sensor photoelectric switch |

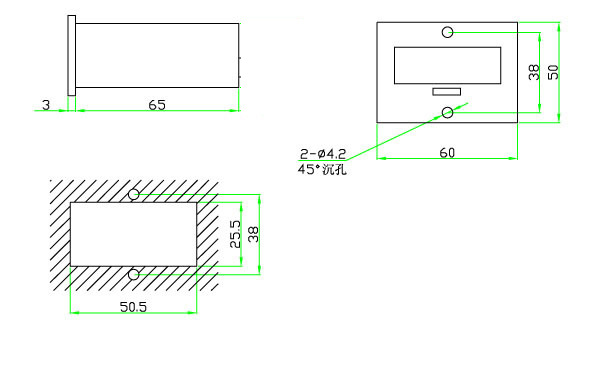

Installation size:
