JDM11-6H electronic counter + photoelectric sensor switch is a special customized product of our Trihero company, with beautiful appearance, accurate and reliable counting, low price and trustworthy. The sensing distance of the photoelectric sensor switch is generally 10cm, other sensing distances can be configured according to customer needs.
JDM11-6H electronic counter is widely used in all occasions that need to count, such as output counting, flow counting, automatic packaging machinery, speed, length, stamping times counting, etc., and can be used for secondary instruments to form a display instrument.
JDM11-6H electronic counter adopts low-power integrated circuit and high-brightness LED display, no mechanical wear, long life, clear and beautiful display, and has the function of saving data when power is interrupted. When the power supply is interrupted, the counted data will be stored in a persistent In the memory (E2PROM), the counted data can be kept for at least ten years. When the power is restored, the count can be continued without loss.
Technical parameter:
|
Count digits |
Five, six |
|
Counting range |
0-99999,0-999999 |
|
Rated working voltage |
DC 12V, 24V, AC24V, 48V, 110V, 220V |
|
Counting speed |
10 (times/sec) and 1000 (times/sec) |
|
Operating voltage range |
85%-110% |
|
Power |
≤2W |
|
After power failure |
The current data is kept for 10 years |
|
Counting input method |
1: Voltage input type 2: No voltage input type |

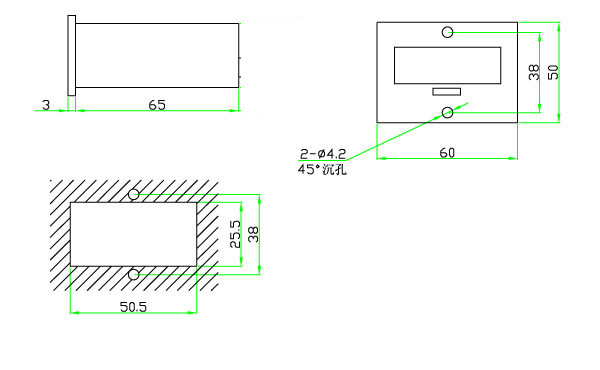

Installation size:
