Working principle and application:
The SYS-1 series of quartz electronic fully sealed timers have novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptation to the environment, low price and convenient use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc. to charge and track and monitor the actual working time of precision instruments and equipment The assessment and maintenance cycle provides a scientific basis.
The main technical parameters:
|
Timing range |
0-- 99999.9 (hour) |
|
Timing accuracy |
±0.01 |
|
Zero reset device |
No reset |
|
Voltage type |
10-80VDC, 100-250VAC |
|
Work rate |
0.3W |
|
Operating temperature |
-10℃--50℃ |
|
Relative humidity |
Fully sealed |
|
Seismic amplitude |
10-70HZ 1--8g (degree of gravity) |

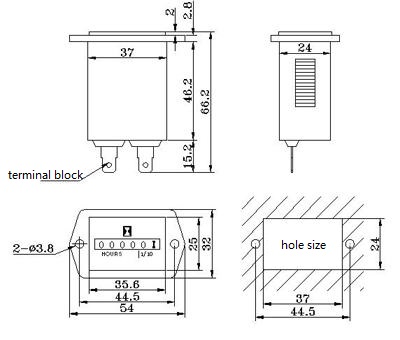

Installation size:
