Working principle and application:

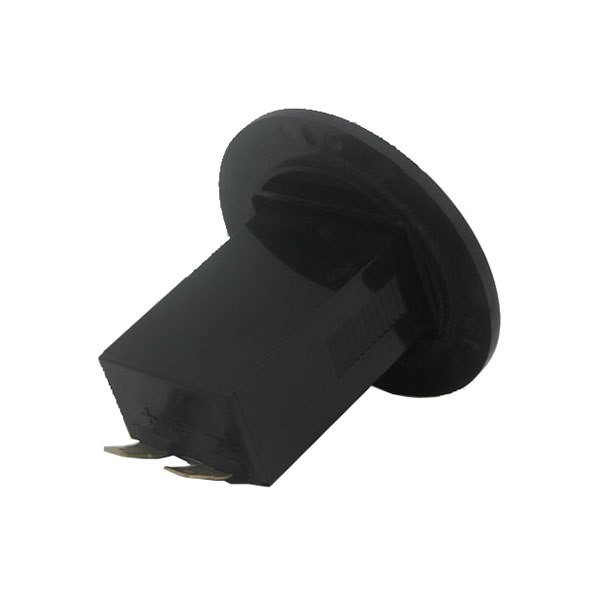

SYS-5 fully sealed electronic mechanical timer, novel structure, dexterity, high precision, stable and reliable performance, long life, wide adaptability to the environment, low price, easy to use. It is most suitable for standard industrial timekeeping, and is widely used in construction machinery, construction vehicles, agricultural machinery, generators, air compressors, water pumps, cranes, cranes, various types of automobiles, etc.
Main technical parameters:
|
Timing range |
99999.9 (hours) |
|
Timing accuracy |
±0.01 |
|
Zero reset device |
No reset |
|
Voltage type |
10~80VDC, 100~250VAC |
|
Work rate |
0.3W |
|
Operating temperature |
-10℃~50℃ |
|
Seismic amplitude |
10~70HZ 1~8g (degree of gravity) |

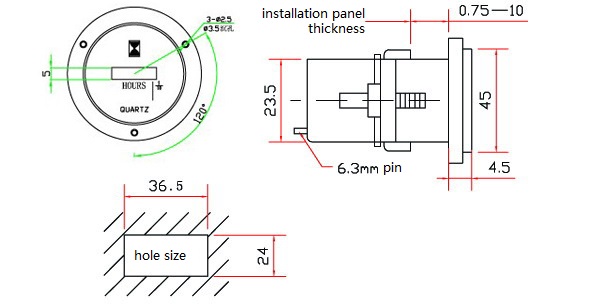

Dimensions:
