XM12 Inductive Linear Proximity Sensor Switch
| Detectable object |
Metal |
||
| Detection distance |
Flush type:2mm |
Non-Flush:4mm |
|
| Model available | Current type |
XM12-3002PMI |
XM12-3004PMI |
| Voltage type |
XM12-3002PMU |
XM12-3004PMU |
|
| Voltage range |
15～30VDC |
||
| Consumption | at the time of detection |
≤200mA…<4mA |
|
| atfhe time of non-detection |
≤20mA |
||
| Loading resistance | Current type |
0～300Ω |
|
| Voltage type |
≥2.2KΩ |
||
| Output | Current type |
4～20mA |
|
| Voltage type |
0-5V/0-10V |
||

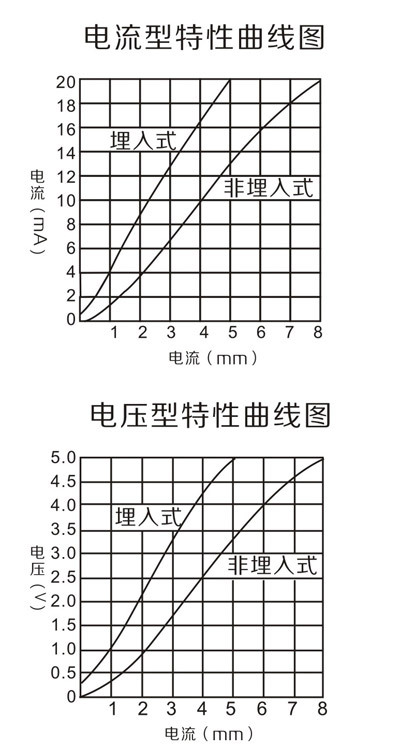

| Output characteristic diagram |
|
||
| Voltage fluctuation |
≤5% |
||
| Output signal |
PNP Simulation |
||
| Linear deviation |
±5% |
||
| Ambient temperature |
一10℃～+70℃ |
||
| Shell material |
Plastic，Metal |
||
| Protection grade |
lp54 |
||
