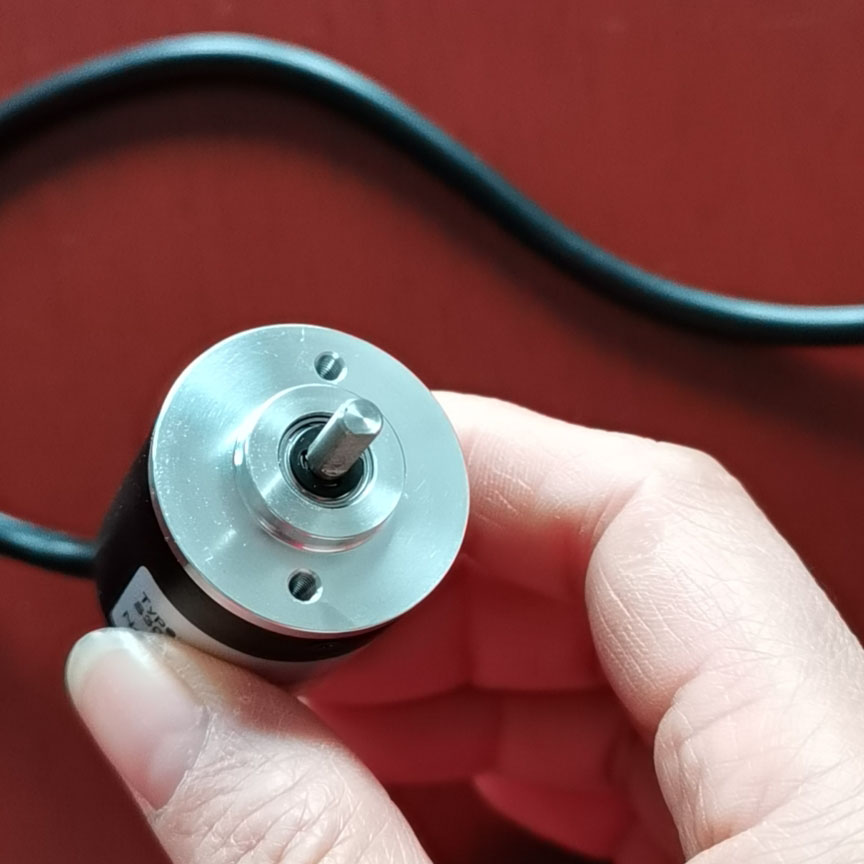

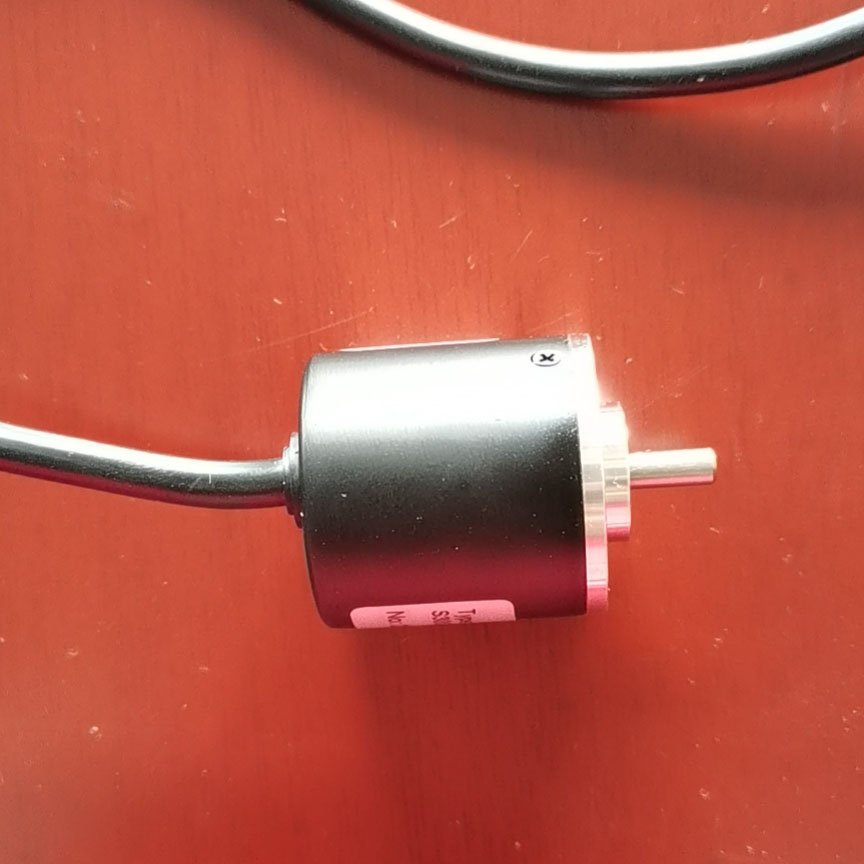

THP30 Series Solid Shaft Incremental Rotary Encoder
● Incremental Rotary Encoder
● External Diamter of 30mm
● Resolution up to 1200ppr
● Various output type
● Solid Shaft with Dia at 4mm
●Power supply: 5 VDC / 8-30 VDC
● Current consumption: 100mA(Load disconnected)
● Output:NPN/PNP open collector/Complementary/Voltage/Line Driver/Push-Pull(HTL with reverse signal)
●Frequency: 100K HZ Frequency=RPM*Resolution/60
● Shaft loading radial: 10N
● Shaft loading thrust: 20N
●Weight: Approxi 0.16KG
●Protection level: IP50
●Temperature: operation(-10C~+70C), storage(-30C~+85C)
Guide of ordering:
