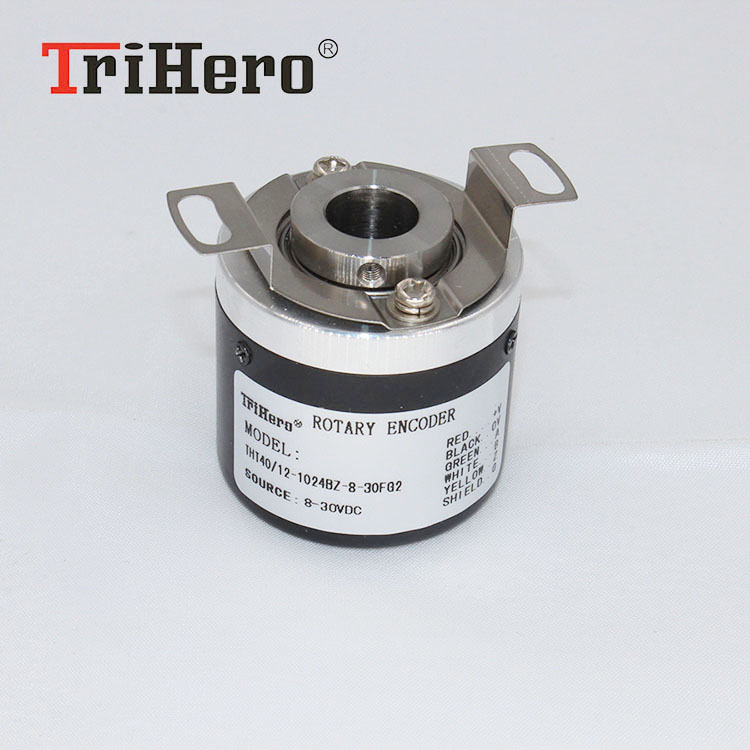

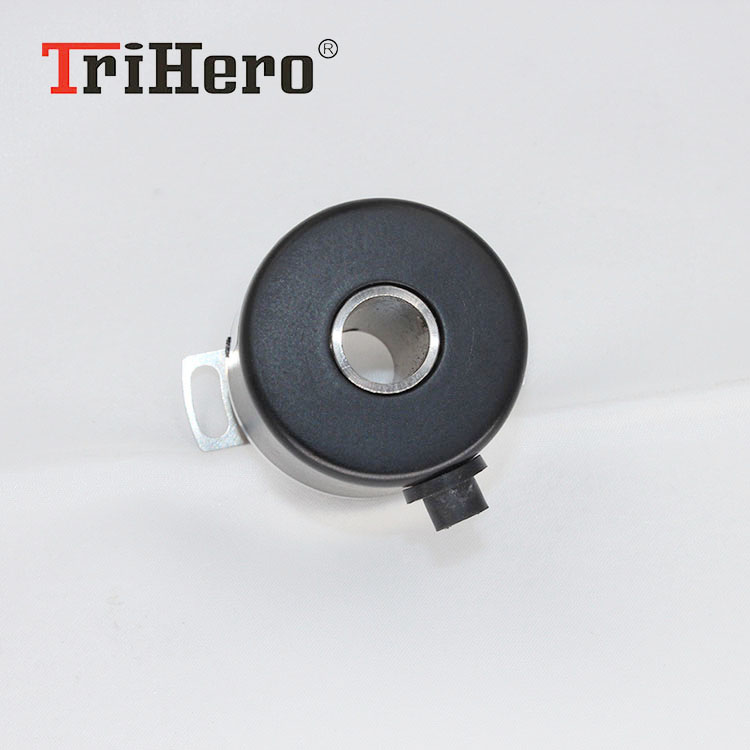

THT40 Series Hollow Shaft Rotary Encoder
● Incremental Rotary Encoder
● External Diameter of 40mm
●Resolution up to 3600ppr
● Various output type
●Hollow type and built-in type
●Power supply: 5 VDC / 8-30 VDC
● Current consumption: 100mA(Load disconnected)
● Output:NPN/PNP open collector/Complementary/Voltage/Line Driver/Push-Pull(HTL with reverse signal)
●Frequency: 100K HZ Frequency=RPM*Resolution/60
● Shaft loading radial: 10N
● Shaft loading thrust: 20N
●Weight: Approxi 0.20KG
●Protection level: IP50
●Temperature: operation(-10C~+70C), storage(-30C~+85C)
Guide of ordering:
