THP40 Series Solid Shaft Incremental Rotary Encoder
● Incremental Rotary Encoder
● External Diamter of 40mm
● Resolution up to 3600ppr
● Various output type
● Solid Shaft with Dia at 6mm
●Power supply: 5 VDC / 8-30 VDC
● Current consumption: 100mA(Load disconnected)
● Output:NPN/PNP open collector/Complementary/Voltage/Line Driver/Push-Pull(HTL with reverse signal)
●Frequency: 100K HZ Frequency=RPM*Resolution/60
● Shaft loading radial: 10N
● Shaft loading thrust: 20N
●Weight: Approxi 0.16KG
●Protection level: IP50
●Temperature: operation(-10C~+70C), storage(-30C~+85C)
●Vibration resistance: 50m/s, 10-65 HZ, 1 mm double amplitude for 2 hours each in X, Y, and Z directions
●Shock resistance:980m/s, 6m/s 2 times each in X, Y, and Z directions
●Starting torque:1.5 x 10-3 N.m Maximum

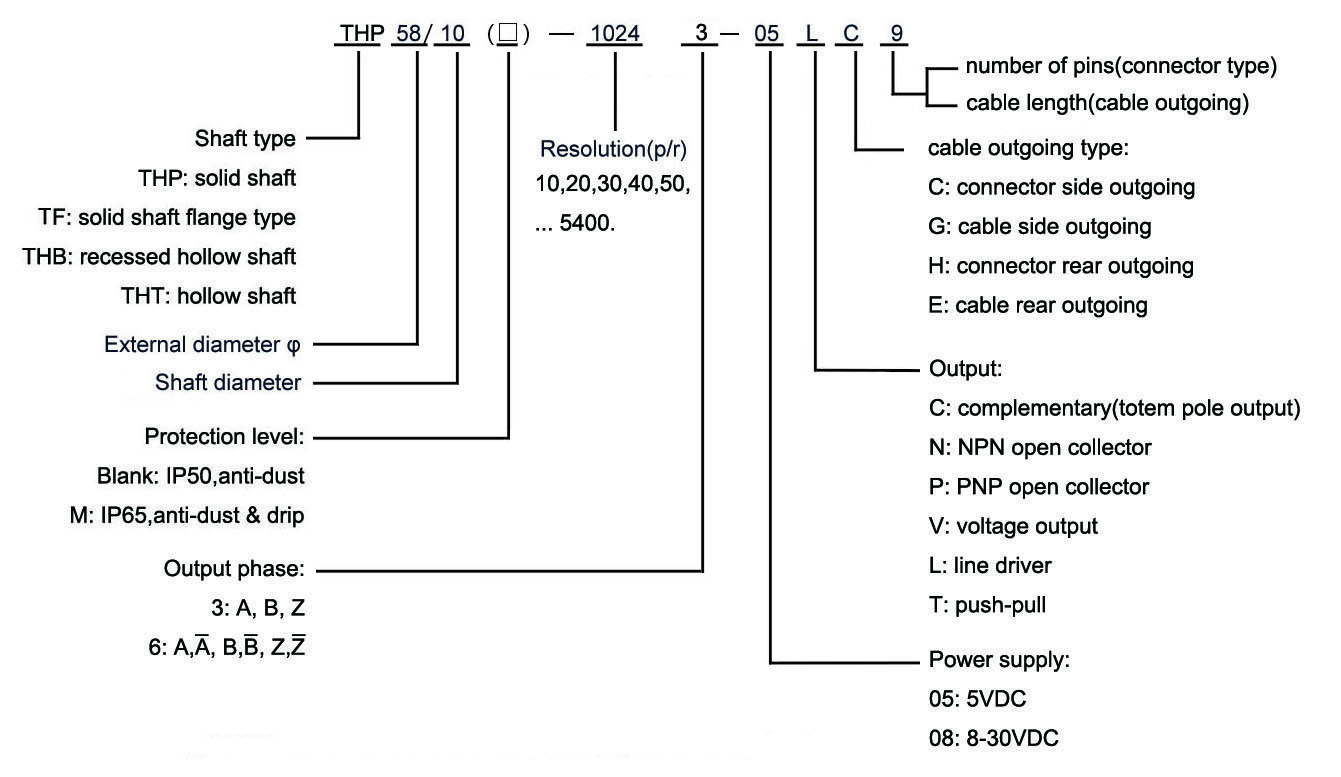

Guide of ordering:
