Digital controllers (Temperature controllers)

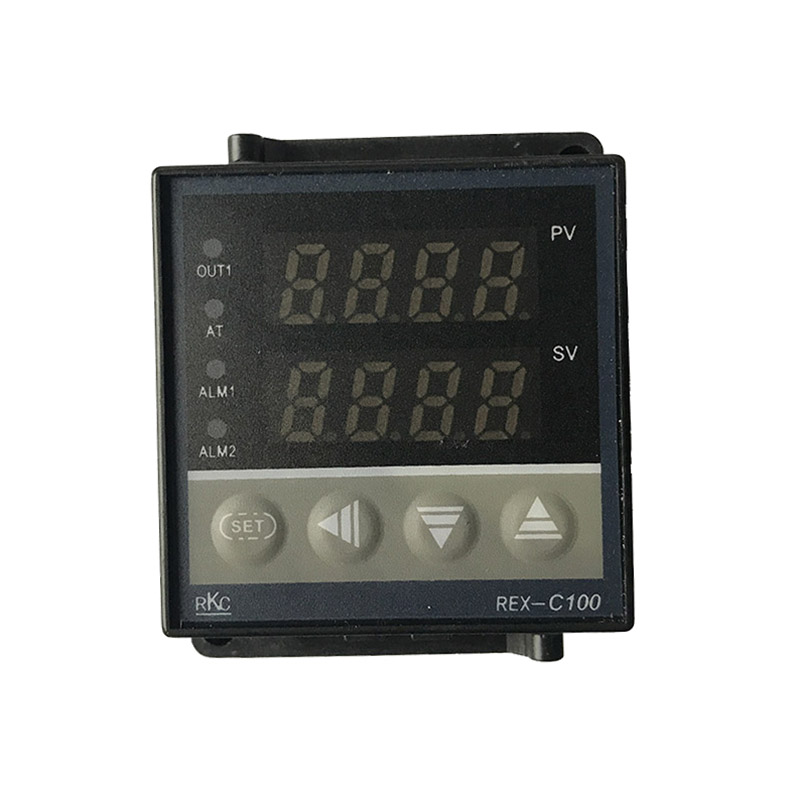

REX-C series（REX-C100 / REX-C400 / REX-C410 / REX-C700 / REX-C900）
- Measurement accuracy: ±0.5% of displayed value
- Sampling time: 0.5 sec.
- Longtime seller temperature controllers
- Plug-in construction
Main specification
- Number of Inputs :1 point
- Input type : ※See the Input Range Code for the input range.
Thermocouple: K, J, T, S, R, E, B, N, W5Re/W26Re, PLII
RTD: Pt100, JPt100
- Sampling time：0.5 sec.
- Measurement accuracy：±(0.5% of displayed value+1 digit) ※Depends on the input and the range.
- Outputs（OUT1）
1) Relay contact output : Form C (1c) contact ※1a contact for REX-C100
2) Voltage pulse output for SSR driving: 0/12V dc
3) DC Current output : 4 to 20mA dc
4) Triac trigger output: Trigger method – Zero cross method
- Output (OUT2) ※Cooling output for heat/cool control
1) Relay contact output : 1a contact
2) Voltage pulse output for SSR driving: 0/12V dc
3) DC Current output : 0 to 20mA dc
- Alarm output (max.2 points): Temperature alarm, Heater break alarm, and Control loop break alarm
- CT input for Heater break alarm (max. 1 point)
- Power supply voltage (Rating): 100 to 240Vac/24Vac/24Vdc
- Ambient temperature: 0 to 50°C
- Weight:
REX-C100 Approx.170g
REX-C400 Approx. 260g
REX-C410 Approx. 260g
REX-C700 Approx. 250g
REX-C900 Approx. 340g
Models:
External dimensions(mm):
