E5C2 DIN-sized (48 x 48 mm) Temperature Controller with Analog Setting
Features:
• Compact, low-cost Temperature Controller.
• Incorporates proportional control and reset adjustment function.
• Consecutive mounting possible using mounting adapter.
• Incorporates a plug-in socket, thus allows to DIN-track and flush
Lineup:
| Input | Thermocouple | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K (CA) Chromel vs. alumel |
|||||||||||
| Standard scale (°C) | 0 to 200 |
0 to 300 |
0 to 400 |
0 to 600 |
0 to 800 |
0 to 1,000 |
0 to 1,200 |
||||
| Setting method |
Indication method |
Control mode |
Output | Minimum scale division (°C) |
5 | 10 | 10 | 20 | 20 | 25 | 25 |
| Analog setting |
No indication |
ON/OFF | Relay | Model | E5C2-R20K | ||||||
| Proportional (P) | Relay | Model | E5C2-R40K | --- | |||||||
| Input | Thermocouple | ||||||
|---|---|---|---|---|---|---|---|
| J (IC) Iron vs. constantan |
|||||||
| Standard scale (°C) | 0 to 200 | 0 to 300 | 0 to 400 | ||||
| Setting method | Indication method | Control mode | Output | Minimum scale division (°C) |
5 | 10 | 10 |
| Analog setting | No indication | ON/OFF | Relay | Model | E5C2-R20J | ||
| Proportional (P) | Relay | Model | --- | ||||
Specifications:
| Supply voltage | 100 to 240 VAC 50/60 Hz |
|---|---|
| Operating voltage range | 90% to 110% of rated supply voltage |
| Power consumption | Approx. 3.6 VA |
| Input | Thermocouple (with sensor burnout detection circuit), platinum resistance thermometer, or thermistor with replaceable element |
| Control mode | ON/OFF or proportional control |
| Setting method | Analog setting |
| Indication method | No indication |
| Control output | Relay output: SPDT, 3 A at 250 VAC, resistive load (switching capacity: 330 VA) |
| Ambient operating temperature | -10°C to 55°C (with no icing or condensation) |
| Ambient operating humidity | 45% to 85% |
Note: Do not use an inverter output as the power supply. (Refer to Safety Precautions for All Temperature Controllers.)
| Setting accuracy | ±2% FS max. (Influence of EMS: ±4% FS max.) *1 |
|---|---|
| Hysteresis | Approx. 0.5% FS (fixed) |
| Proportional band | 3% FS (fixed) |
| Control period | Approx. 20 s |
| Reset range | 5 ±1% FS min. *2 |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min between charged terminals and uncharged metallic parts |
| Vibration resistance | Malfunction: 10 to 55 Hz, 0.15-mm single amplitude for 10 min each in X, Y, and Z directions Destruction: 16.7 Hz, 2-mm double amplitude for 2 hrs each in X, Y, and Z directions |
| Shock resistance | Malfunction: 147 m/s2, 3 times each in 6 directions Destruction: 294 m/s2, 3 times each in 6 directions |
| Life expectancy | Electrical: 100,000 operations min. (3 A at 110 VAC, resistive load) |
| Weight | Approx. 100 g (with flush-mounting adapter) |
| Degree of protection | Front panel: IEC standard IP40 *3 Terminals: IEC standard IP00 |
| Applicable Socket | P2CF-08 (order separately), P3G-08 (order separately) |
| Applicable Protective Cover |
Y92A-48B (order separately) |

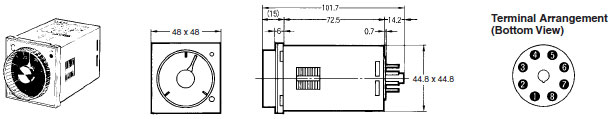

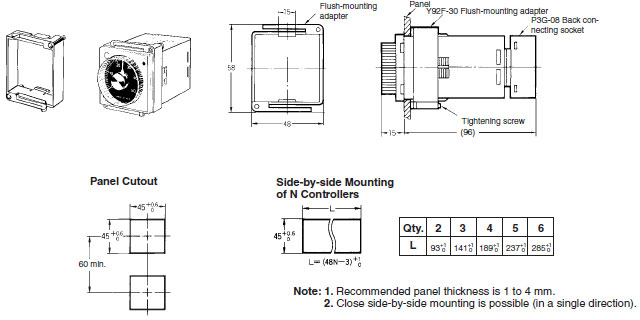

Dimensions:
E5C2
