TCN4 Series Economical Dual Display PID Temperature Controllers

TCN4 Series

Economical Dual Display PID Temperature Controllers

The TCN series dual display PID temperature controllers offer excellent performance and cost efficiency. The controllers offer high-speed sampling rate of 100 ms and ±0.5% display accuracy. Relay output and SSR drive output are both supported. The TCN series models can simultaneously display PV and SV. The bright LED displays with large characters provide easy and clear value readings.

Main features

• Dual digital display (PV/SV)
• 100ms high-speed sampling rate and ±0.5% display accuracy
• Relay output + SSR drive output
• SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
• Compact design with large display panels for easier reading

Applications

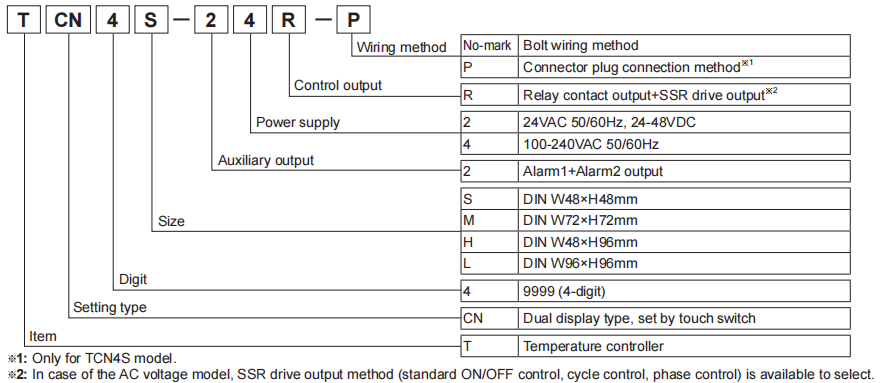

Ordering information

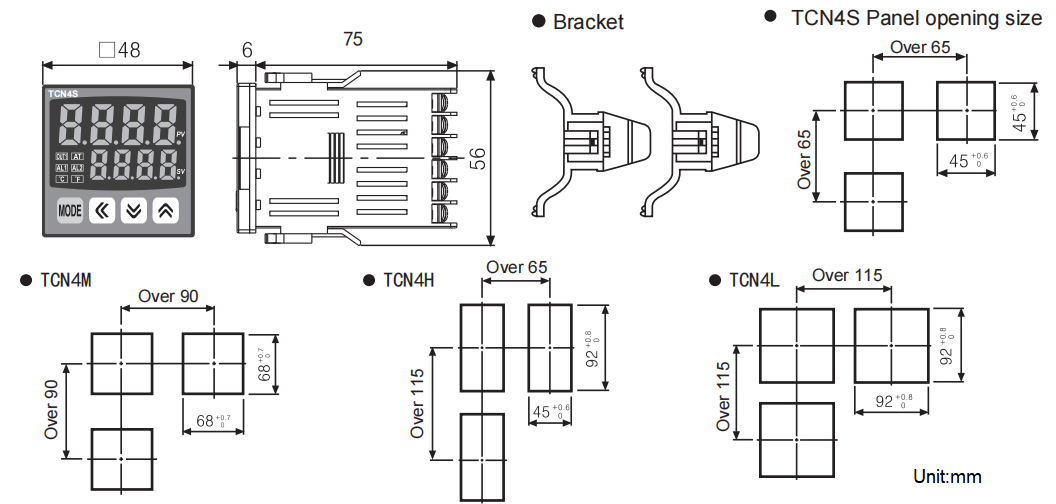

Dimensions:
