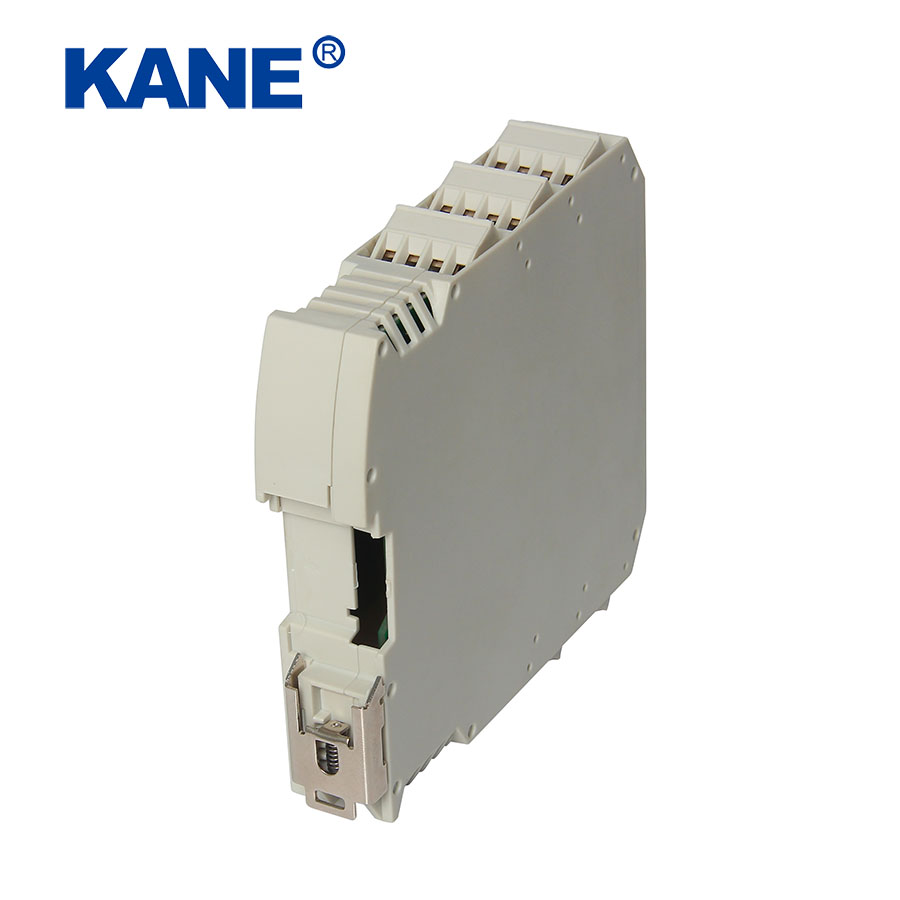

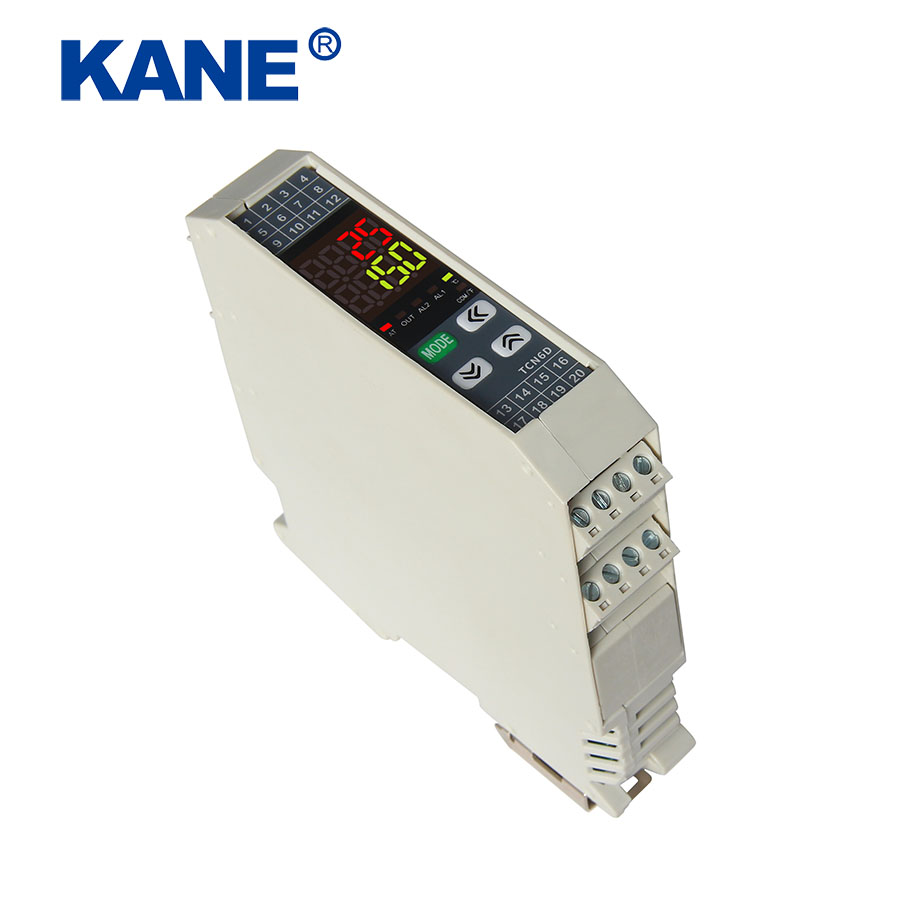

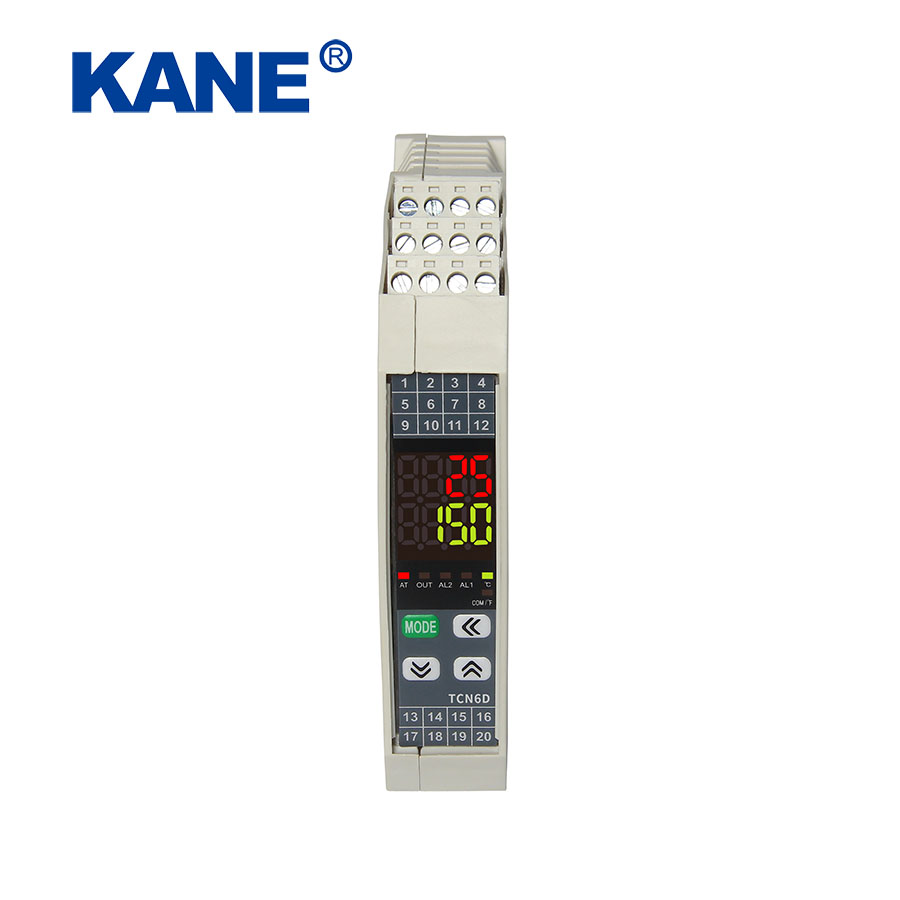

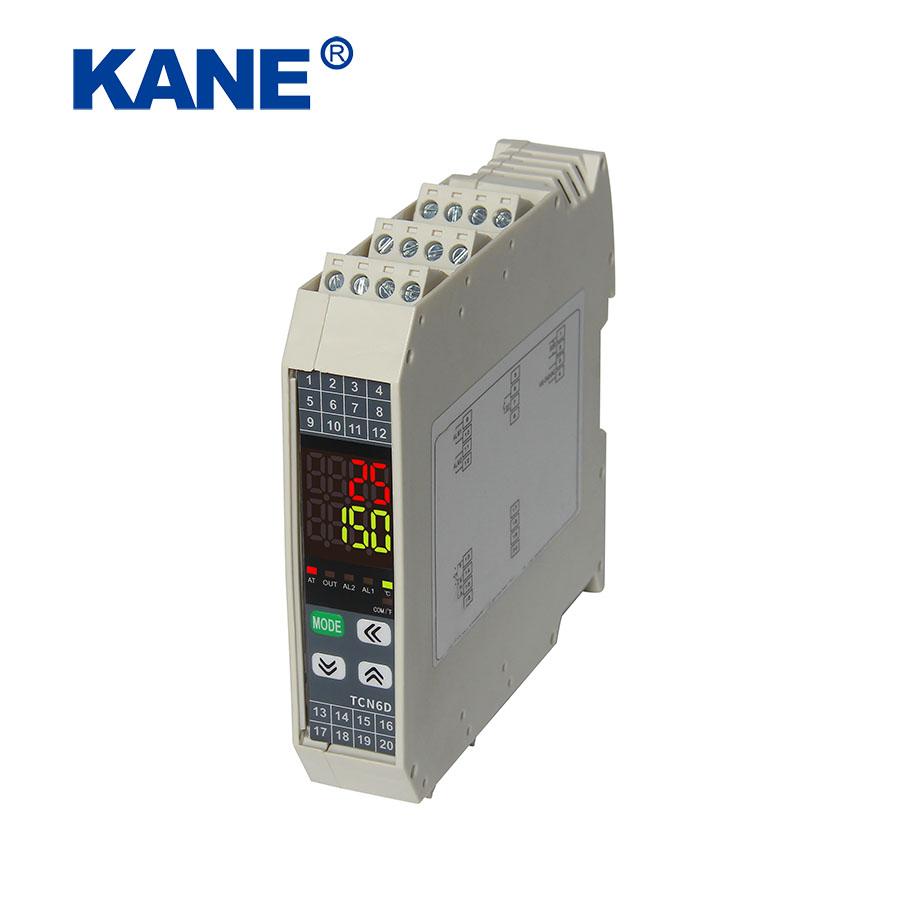

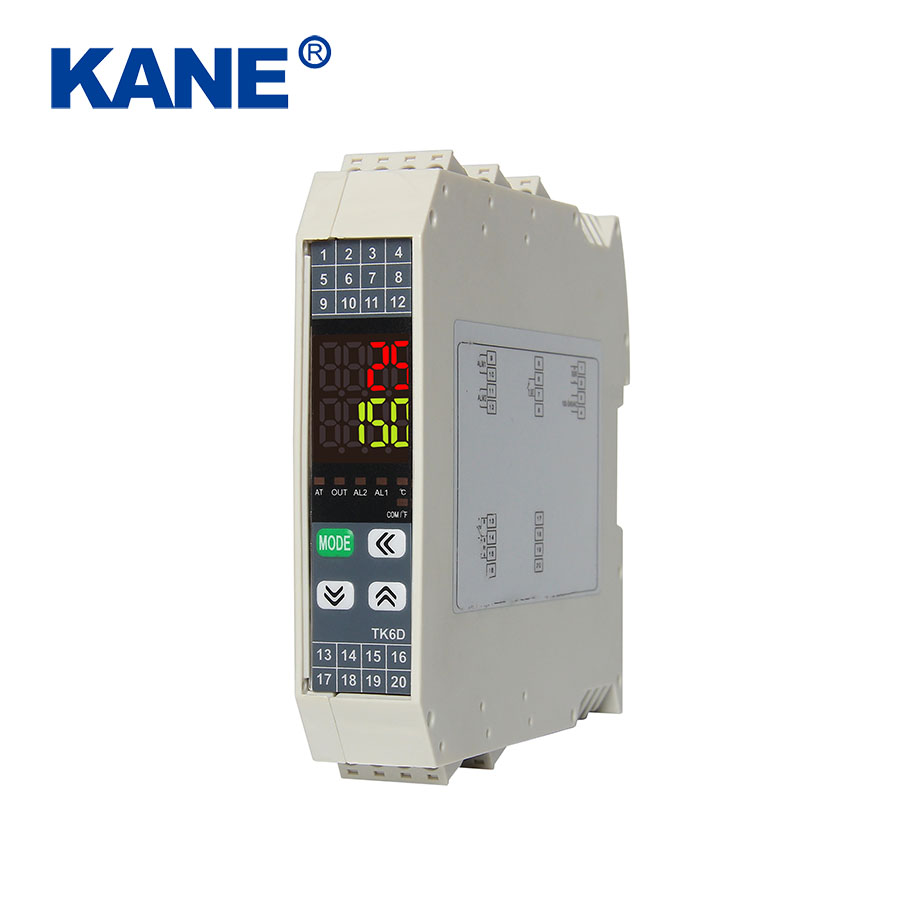

TAI series DIN rail mounted multi-channel PID temperature controller is a new generation of intelligent control products based on the inheritance of many classic technologies of Trihero. D7/E7 DIN rail mounted module with digital display has installation width of only 22.5mm, which is designed for ten years life at least and three-year warranty. It is widely used in occasions that need to save space, to collect data and control temperature, pressure, humidity and etc.
FUNCTIONS AND FEATURES
● With digital display and physical buttons, which allows data checking and operation setting on module.
● 22.5mm installation width, widely used in occasions that need to save space.
● Special custom LED display, perfect dual 4-digit display in limited space.
● Products designed for ten years life at least and three-year warranty.
● One channel L0 relay output and RS485 communication integrated, convenient for users.
● D7 Terminals for power and communication share one-wire port for plug and unplug.
MODEL SELECTION AND SPECIFICATIONS
|
Type |
Model |
Function Specifications |
|
Single channel PID temperature controller |
TAI-516D7 TAI-516E7 |
0.3%FS measuring accuracy, AIBUS/MODBUS dual communication protocol, modular OUTP optional: G, X5, L2, K1, K5, K6, W1 |
|
TAI-516PD7 TAI-516PE7 |
based on TAI-516D7/TAI-516E7, 30 segments programmable function is added |
|
|
TAI-519D7 TAI-519E7 |
0.25%FS measuring accuracy, hand-auto switching, soft-start, AIBUS/MODBUS dual communication protocol, modular OUTP optional: G, X5, L2, K1, K5, K6, W1 |
|
|
TAI-526D7 TAI-526E7 |
0.25%FS measuring accuracy, heating and cooling dual PID output, AIBUS/MODBUS dual communication protocol, modular OUTP optional: G, X5, L2, K1, K5, K6, W1 |
|
|
TAI-526PD7 TAI-526PE7 |
based on TAI-526D7/TAI-526E7, 30 segments programmable function is added |
|
|
Multi-channel PID temperature controller |
TAI-7028D7 TAI-7028E7 |
2-channel PID temperature controller, 0.2%FS measuring accuracy, SSR output, thermocouple input(two-wire Pt100 customized) |
|
TAI-7048D7 TAI-7048E7 |
4-channel PID temperature controller, 0.2%FS measuring accuracy, SSR output, thermocouple input(two-wire Pt100 customized) |
|
|
indicator |
TAI-703MD7J0 |
3-channel indicator, 0.2%FS measuring accuracy, 3 channels three-wire Pt100 input, with subtraction and multiplication calculation functions |
|
TAI-706MD7J1 |
6-channel indicator, 0.2%FS measuring accuracy, 6 channels thermocouple input, with subtraction and multiplication calculation functions |
|
|
TAI-706MD7J2 |
6-channel indicator, 0.2%FS measuring accuracy, 6 channels two-wire Pt100 input, with subtraction and multiplication calculation functions |
|
|
TAI-706MD7J3 |
6-channel indicator, 0.2%FS measuring accuracy, 6 channels voltage input, with subtraction and multiplication calculation functions |
|
|
TAI-706MD7J4 |
6-channel indicator, 0.2%FS measuring accuracy, 6 channels current input,withsubtraction and multiplication calculation functions |
