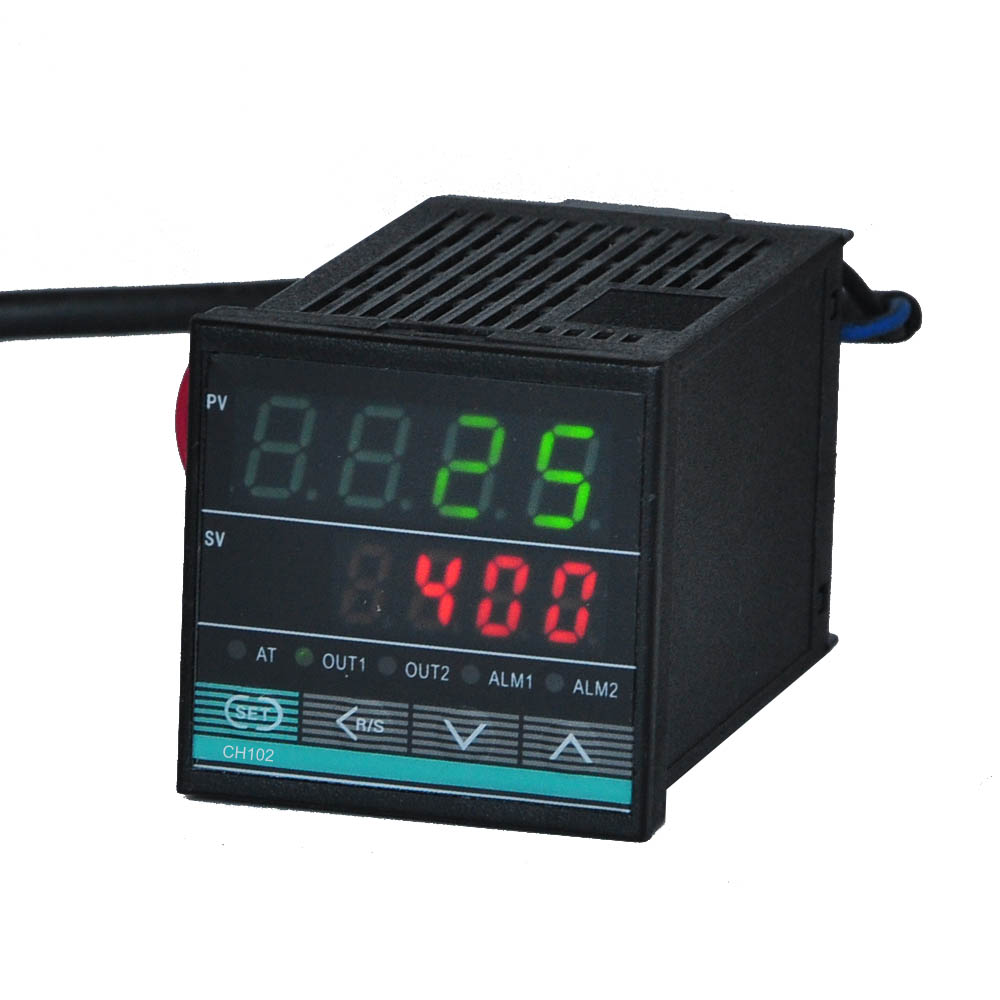

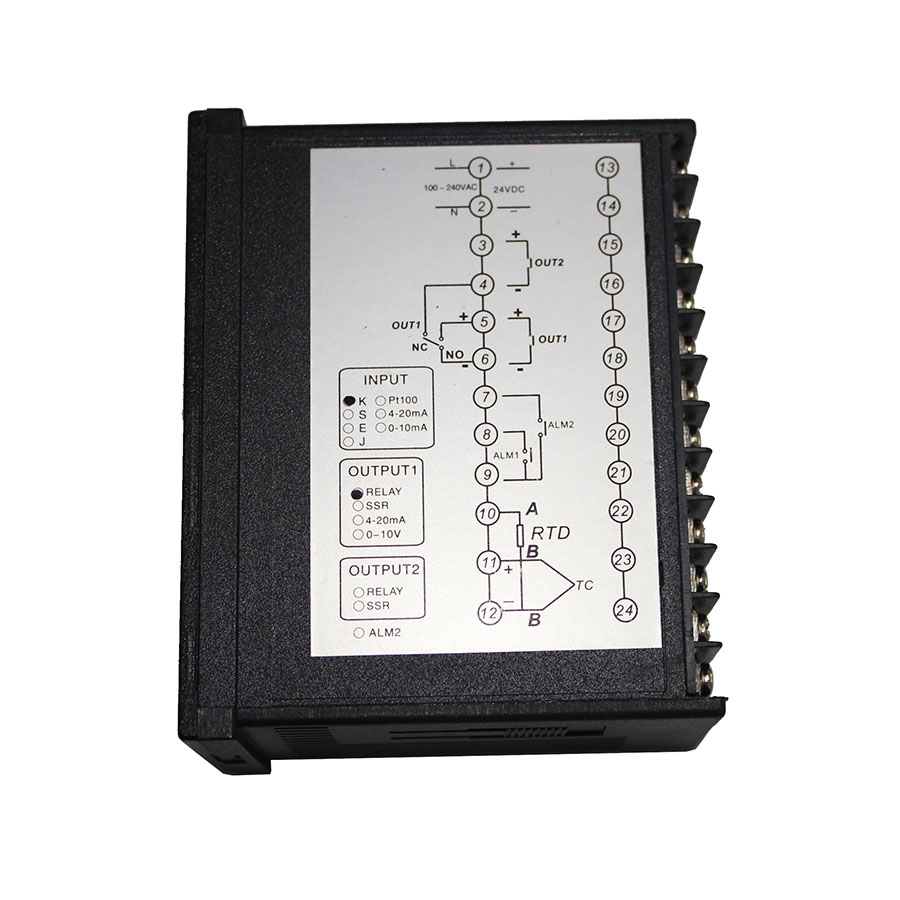

● Digital PID Temperature Controller
● Size:48*48mm,48*96mm,96*48mm,72*72mm,96*96mm

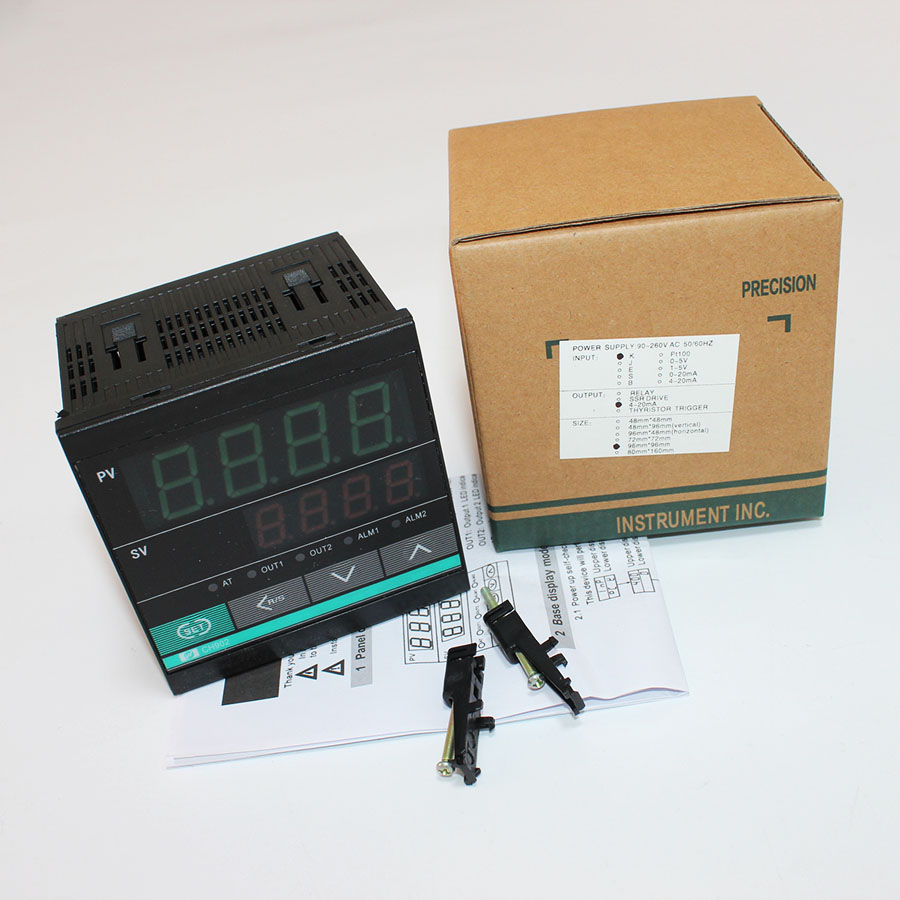

● Dual display,4 digits,7 segments LED display
● 0.5%F.S Measuring accuracy
● Universal Input(TC,RTD,Analog)
● Relay/SSR Drive/4-20mA/0-10VDC output
● Maximum 2 alarms
● Power supply:85~265Vac 50/60HZ
● CE compliance
1:Size Information
48: 48mm(Width)*48mm(Height)

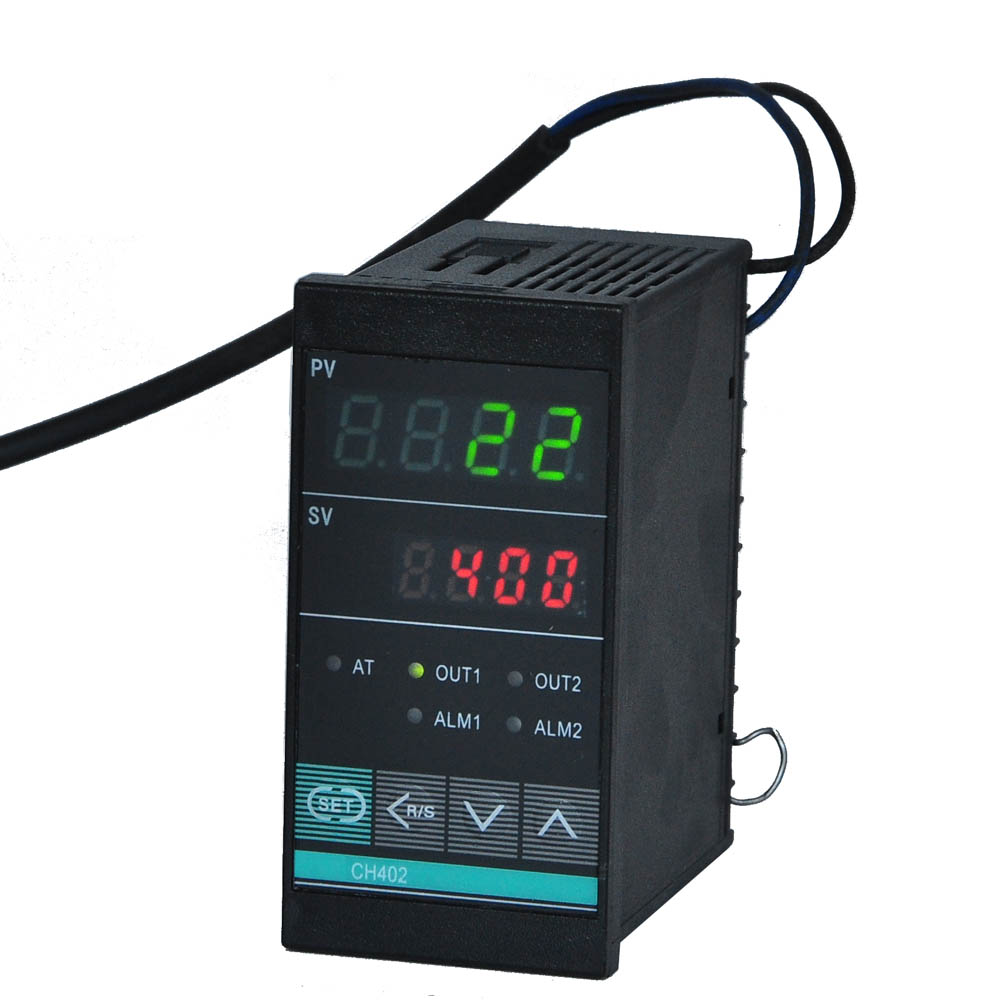

49: 48mm(Width)*96mm(Height)

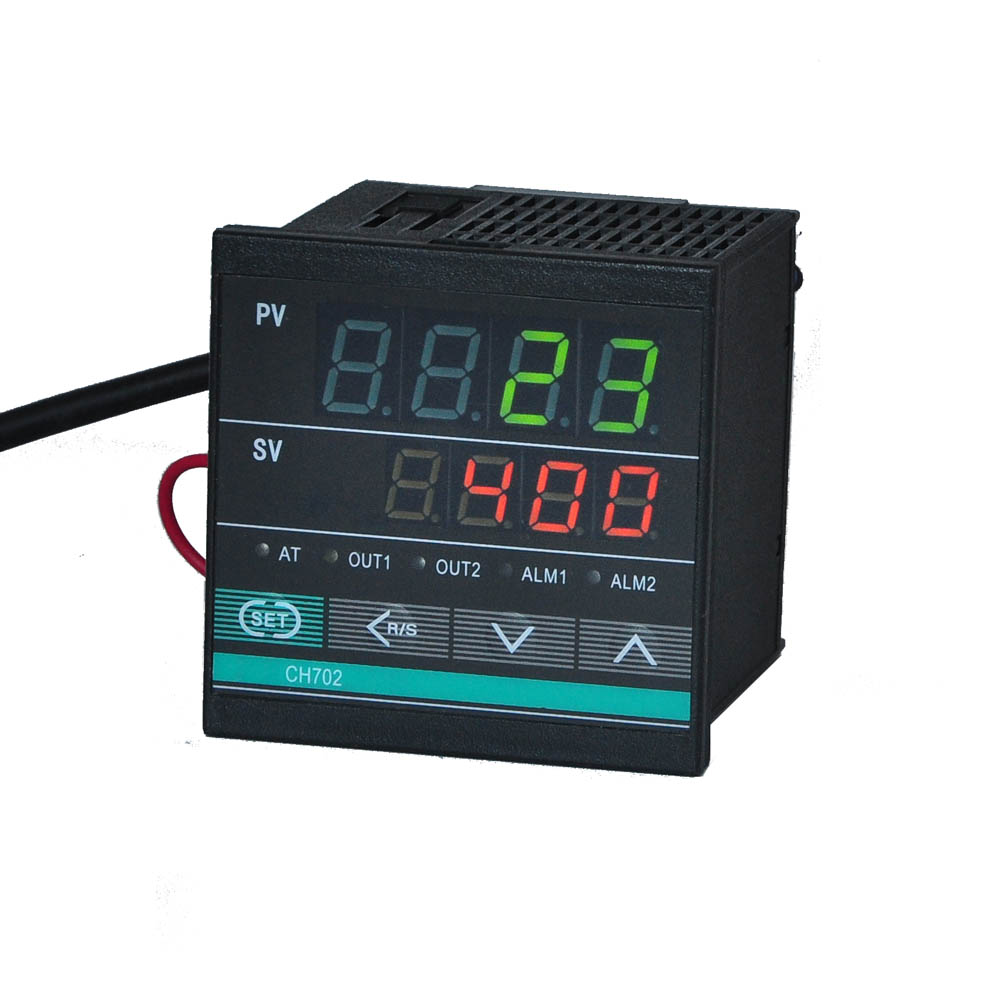

72: 72mm(Width)*72mm(Height)
96: 96mm(Width)*96mm(Height)

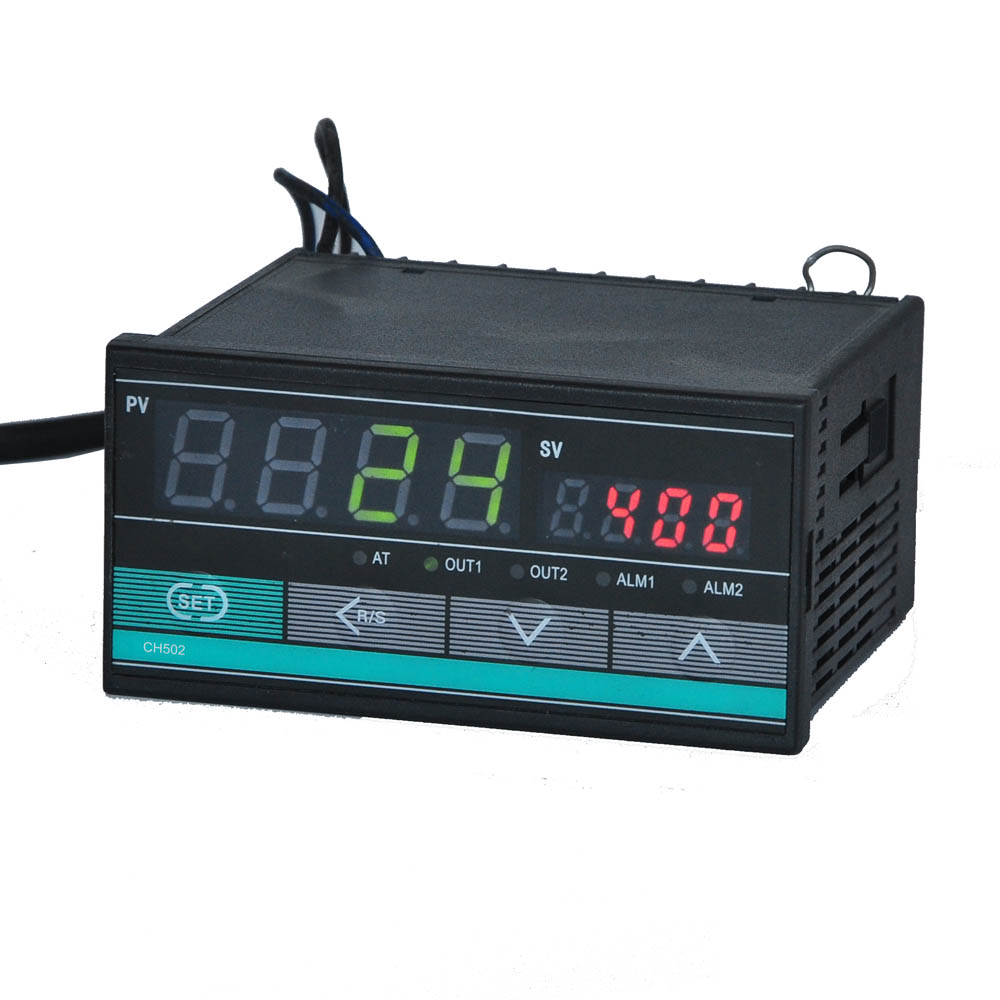

94: 96mm(Width)*48mm(Height)

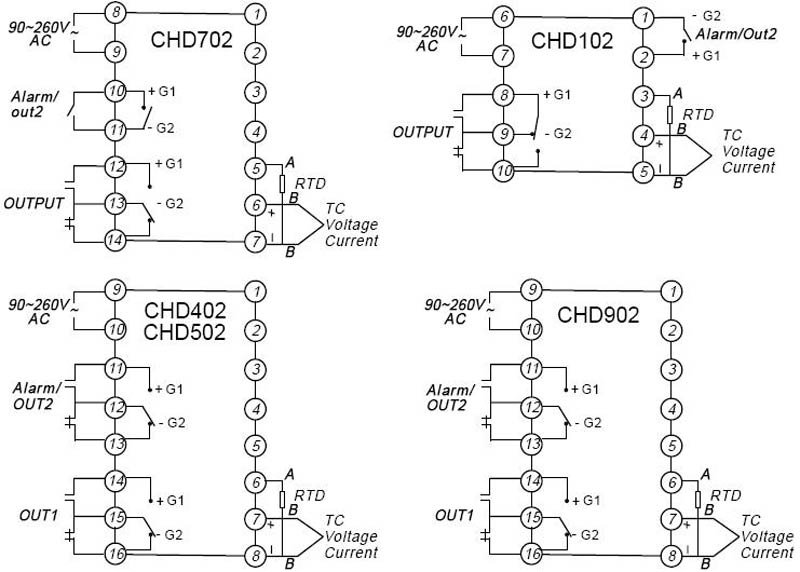

2:Output
R: Relay
V: SSR drive
D: 4-20mA
3:Alarm
1: 1 alarm output
2: 2 alarm output
4:Power supply
1: 90-260Vac
2: 24Vdc
• Input Signals
TC: K,S,E,J,T,B,N
RTD: Cu50, Pt100
Linear Voltage: 0-5V,1-5V,0-1V,0-100mV,0-20mV,0-60mV,0.2-1V(100-500mV).-20 - 20mV(0-10V) -5V- 5V(0-50V), -100 - 100mV(2-10V)
Linear Resistor: 0-80 Ohm, 0-400 Ohm
• Measuring Range
K(-50 to 1300°C),S(-50 to 1700°C),R(-50 to 1650°C),T(-200 to 350°C),E(0-800°C),J(0-1000°C) 6(0-1800°C),N(0-1300°C),Cu50(-50 to 150°C),Pt100(-200 to +600°C)
Linear input: defined by user, range(-1999 to 9999)
• Measuring accuracy
0.2%FS+0.1°C (Cu50 copper resistor compensation or ice point compensation)
0.2%FS+0.2°C (TC input and internal compenstation)
• Resolution
0.1°C or 1°C selectable (Automatically change to 1°C when the temperature is high than 999.9°C)
• Control Mode
on/off control mode(deadband adjustable)
Al MPT with auto tuning,adopting fuzzy logic PID algorithm
