● Large setting range
● Small size
● Simple to mount
● High switching performance

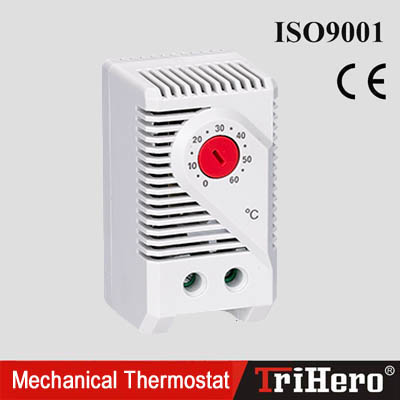

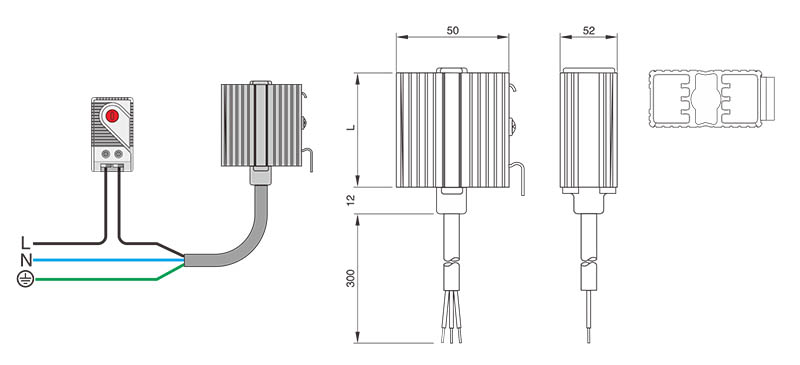

KTO 011: Thermostat (normally closed); contact breaker for regulating heaters.
KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. Switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43mm |
| Weight | approx. 40g |
| Fitting position | variable |
| Operating / Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
